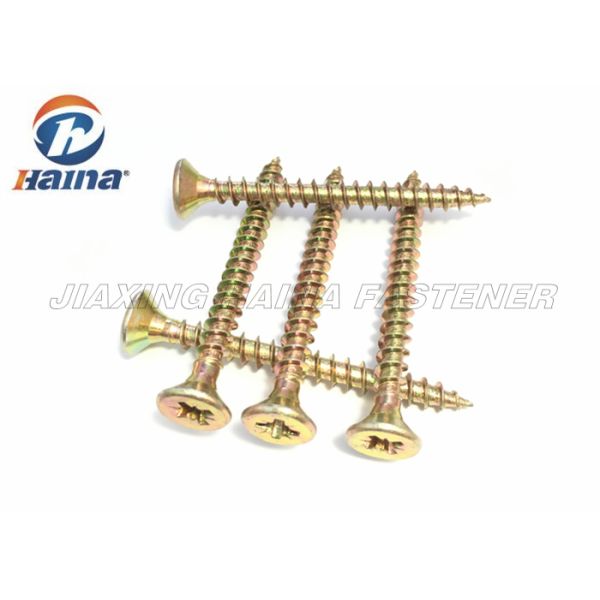

DIN7505 Particle board Type Z Countersunk Head Chipboard Screw
Description:
Chipboard screw is made through a heat treatment process for power tools to install the product, is mainly used for wood panels, wooden boards and steel sheet and the connection between the fastening. The chipboard screws are mainly used for wood panels, wooden boards and steel sheet and the connection between the fastening. To a large extent, it can replace the use of ordinary wood screws (wood screws without heat treatment). At the same time, wood screws present, first proposed by beacons shrink rod production process, not only to save material, and thread sharper. It is sinmilar with the drywall screws. Drywall screws are different to the exterior in the feature is the trumpet shape, which is divided two-lane fine pitch drywall screws and drywall screws coarse thread single line. the biggest difference between the two is that the former is a dual thread screw for gypsum board with a thickness of not connect more than 0.8mm of metal between the keel, which is suitable for plasterboard and wood keel connection.
Drywall screw fastener product line throughout the series is the most important categories. The product is mainly used for a variety of gypsum board, light wall and ceiling mounting ceiling series.
Specification:
Name: |
DIN7505 Particle board Type Z Countersunk Head Chipboard Screw |
Raw Material : | CARBON STEEL C1022A |
| Quality : | Grade A Quality |
| MOQ : | 300,000PCS |
| Specifications: | Different shape size according to client's requirement |
| Surface : | Yellow Zinc, Galvanized (Various of color), blackened, phosphating |
| Professional: | Specialized in fastener products more than 10 years |
| Packing : | IN BULK :canton/pallet, Small Boxs/carton/ pallet, or customer request |
| Payment terms : | T/T,L/C,D/P,WESTERN UNION ,ETC... |
| Delivery time : | In 20-30 Days |
| SIZES | PCS/BOX | KGS/BOX | LBS/BOX | BOX/CTN | PCS/CTN | KGS/CTN |
| 3.5*16 | 1,000 | 0.90 | 2.0 | 16 | 16,000 | 14.4 |
| 3.5*19 | 1,000 | 1.00 | 2.2 | 16 | 16,000 | 16.0 |
| 3.5*25 | 1,000 | 1.20 | 2.6 | 12 | 12,000 | 14.4 |
| 3.5*32 | 500 | 0.78 | 1.7 | 16 | 8,000 | 12.5 |
| 3.5*35 | 500 | 0.82 | 1.8 | 16 | 8,000 | 13.1 |
| 3.5*38 | 500 | 0.90 | 2.0 | 12 | 6,000 | 10.8 |
| 3.5*41 | 500 | 0.96 | 2.1 | 12 | 6,000 | 11.5 |
| 3.5*45 | 500 | 1.00 | 2.2 | 12 | 6,000 | 12.0 |
| 3.5*51 | 500 | 1.15 | 2.5 | 8 | 4,000 | 9.2 |
| 3.5*55 | 500 | 1.21 | 2.7 | 8 | 4,000 | 9.7 |
| 3.9*64 | 250 | 0.85 | 1.9 | 12 | 3,000 | 10.2 |
| 3.9*70 | 250 | 0.95 | 2.1 | 12 | 3,000 | 11.4 |
| 3.9*76 | 250 | 1.00 | 2.2 | 12 | 3,000 | 12.0 |
| 4.2*19 | 1,000 | 1.45 | 3.2 | 16 | 16,000 | 23.2 |
| 4.2*25 | 1,000 | 1.80 | 4.0 | 12 | 12,000 | 21.6 |
| 4.2*32 | 500 | 1.10 | 2.4 | 16 | 8,000 | 17.6 |
| 4.2*35 | 500 | 1.20 | 2.6 | 16 | 8,000 | 19.2 |
| 4.2*38 | 500 | 1.28 | 2.8 | 12 | 6,000 | 15.4 |
| 4.2*41 | 500 | 1.38 | 3.0 | 12 | 6,000 | 16.6 |
| 4.2*45 | 500 | 1.50 | 3.3 | 12 | 6,000 | 18.0 |
| 4.2*51 | 500 | 1.60 | 3.5 | 8 | 4,000 | 12.8 |
| 4.2*55 | 500 | 1.75 | 3.9 | 8 | 4,000 | 14.0 |
| 4.2*64 | 250 | 0.95 | 2.1 | 12 | 3,000 | 11.4 |
| 4.2*70 | 250 | 1.00 | 2.2 | 12 | 3,000 | 12.0 |
| 4.2*76 | 250 | 1.10 | 2.4 | 12 | 3,000 | 13.2 |
| 4.2*90 | 250 | 1.32 | 2.9 | 12 | 3,000 | 15.8 |
| 4.2*100 | 200 | 1.42 | 3.1 | 12 | 2,400 | 17.0 |
| 4.8*90 | 200 | 1.48 | 3.3 | 12 | 2,400 | 17.8 |
| 4.8*95 | 200 | 1.60 | 3.5 | 12 | 2,400 | 19.2 |
| 4.8*102 | 200 | 1.65 | 3.6 | 12 | 2,400 | 19.8 |
| 4.8*127 | 100 | 1.05 | 2.3 | 12 | 1,200 | 12.6 |
| 4.8*152 | 100 | 1.25 | 2.8 | 12 | 1,200 | 15.0 |
Application:
Throughout the fastener industry, the product is just as important as a similar drywall screws and a huge variety of sales, widely used in furniture manufacturing and other industries, but the use in the DIY market is still very limited. At present, domestic consumers in the purchase of building materials in the supermarket varieties, mainly for mounting rails, hinges (3.5 * 16, etc., for example), with the fish expander installation (for example, 4 * 40, etc.) as well as alternative wood screws make furniture, cabinets, etc. . Better quality, choose Shanghai hangtou standard factory production element edge brand is better, the quality of all aspects of the package price are more affordable, plus claw Shank chipboard screws ordinary chipboard screw improved products, it is mainly from thread conduct design optimization, the pursuit of higher drill speeds and solve problems using easily cause cracking, high technology content on the hard wood.
Advantages:
1. Over world market;
2. Less MOQ;
3. Competitive Price;
4. Quick response;
5. Short Delivery time;
6. Provide MTC
